FaPN: Feature-aligned Pyramid Network for Dense Image Prediction
ICCV 2021

Abstract

overview

Recent advancements in deep neural networks have made remarkable leap-forwards in dense image prediction. However, the issue of feature alignment remains as neglected by most existing approaches for simplicity. Direct pixel addition between upsampled and local features leads to feature maps with misaligned contexts that, in turn, translate to mis-classifications in prediction, especially on object boundaries. In this paper, we propose a feature alignment module that learns transformation offsets of pixels to contextually align upsampled higher-level features; and another feature selection module to emphasize the lower-level features with rich spatial details. We then integrate these two modules in a top-down pyramidal architecture and present the Feature-aligned Pyramid Network (FaPN). Extensive experimental evaluations on four dense prediction tasks and four datasets have demonstrated the efficacy of FaPN, yielding an overall improvement of 1.2 - 2.6 points in AP / mIoU over FPN when paired with Faster / Mask R-CNN. In particular, our FaPN achieves the state-of-the-art of 56.7 % mIoU on ADE20K when integrated within MaskFormer.

Method

overview

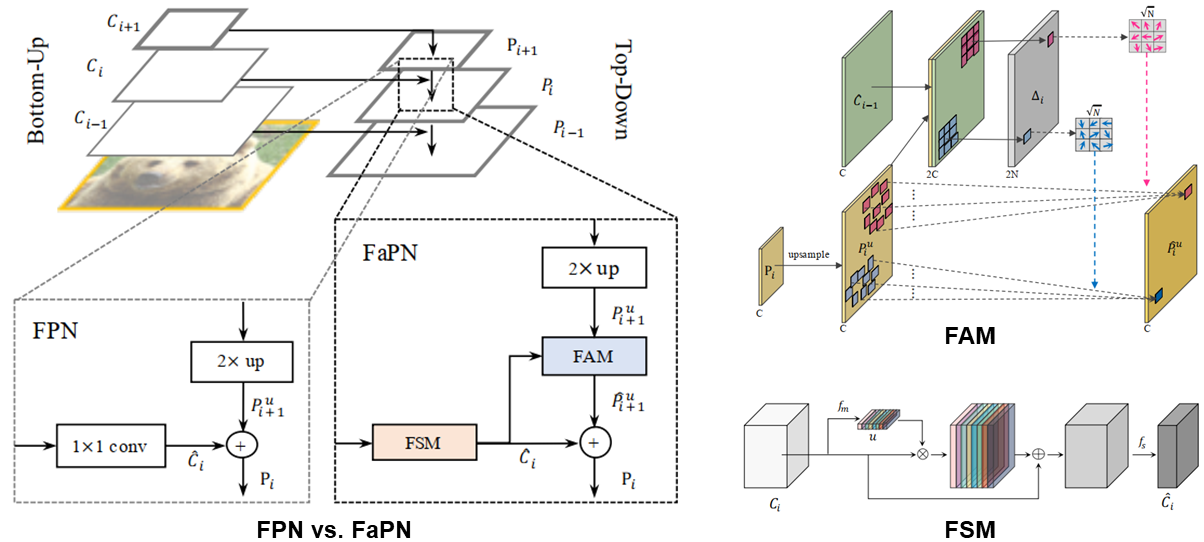

Our FaPN is an enhanced drop-in replacement of FPN. The general framework of our FaPN, comprised of a Feature Alignment Module (FAM) and a Feature Selection Module (FSM).

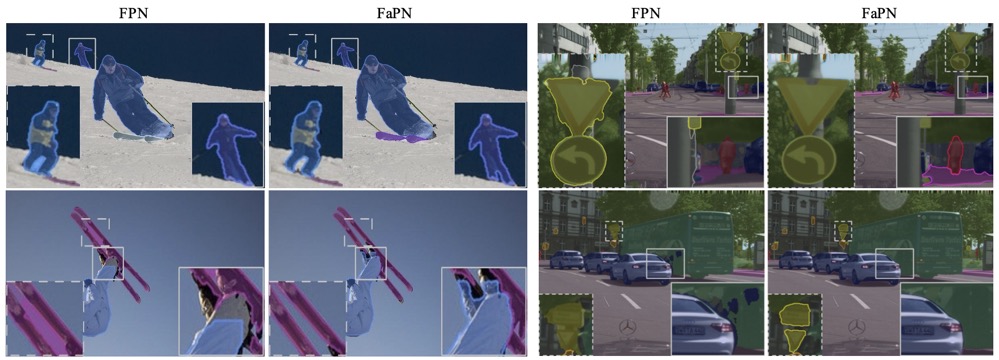

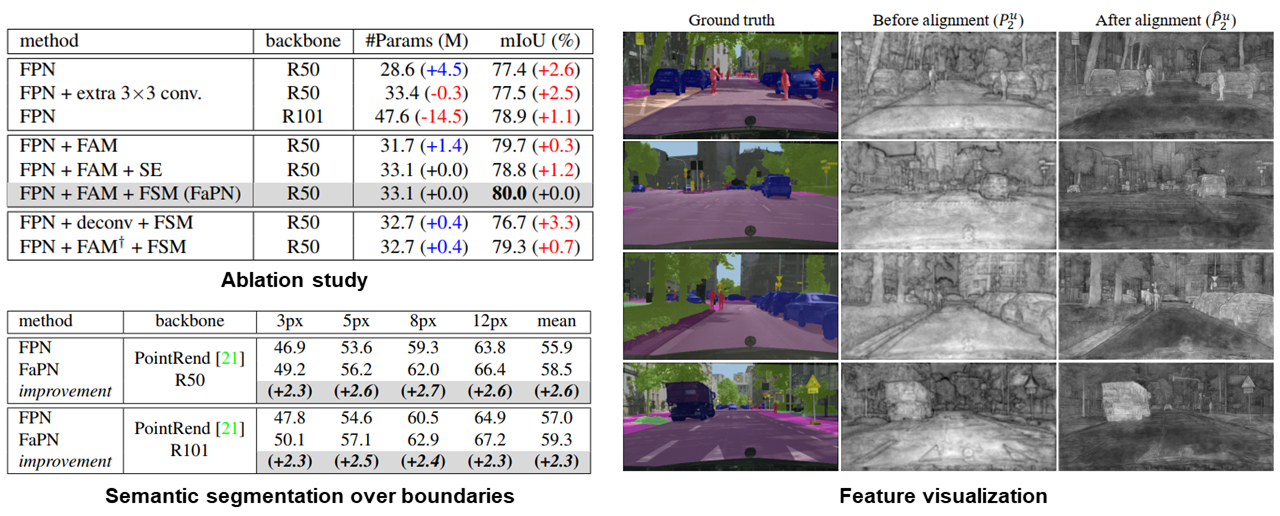

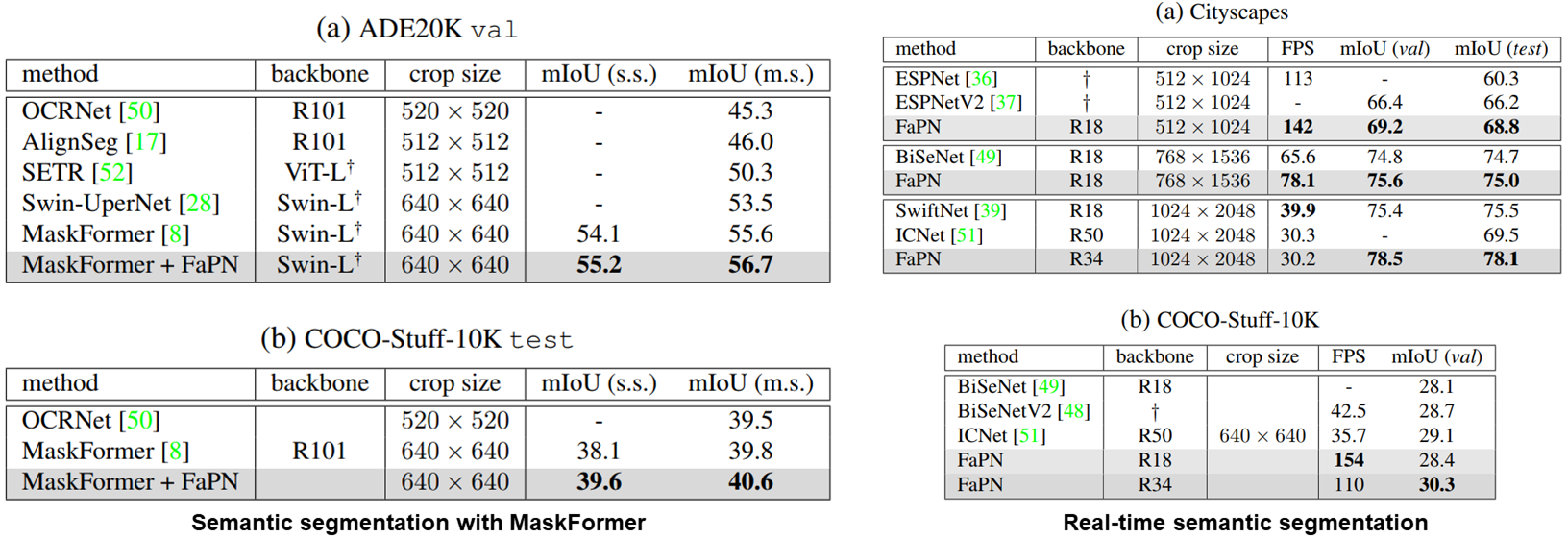

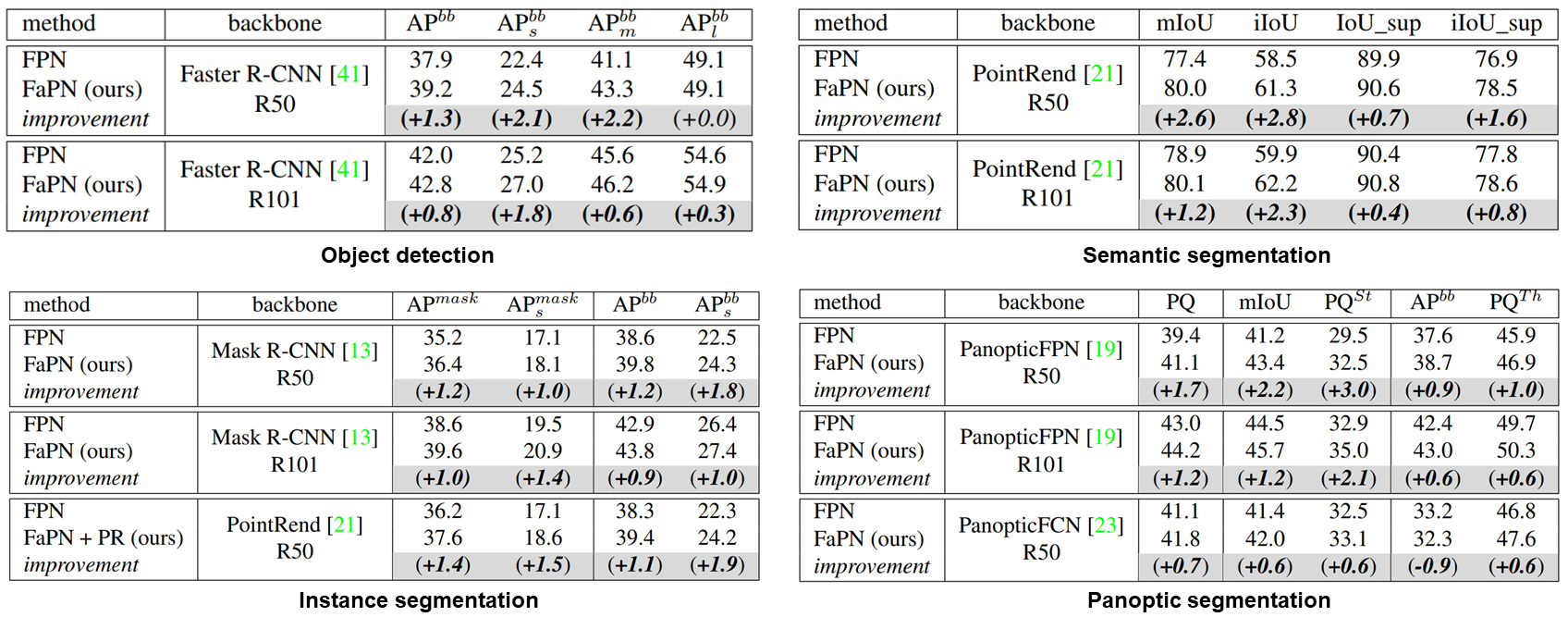

Experimental results

overview

overview

overview

Related links

Our implementation is based on detectron2, PanopticFCN, and MaskFormer.

Citation

Acknowledgements

This work was supported by the National Natural Science Foundation of China (Grant No. 61903178, 61906081, and U20A20306) and the Program for Guangdong Introducing Innovative and Enterpreneurial Teams (Grant No. 2017ZT07X386)
